G&D Chillers | Portable Glycol Chiller/Heater Series | CH-5/10.5 | 35,800 Btu/H
Login to view pricing
GLY824

G&D Chillers | Portable Glycol Chiller/Heater Series | CH-5/10.5 | 35,800 Btu/H

Login to view pricing
Description

The industry standard when it comes to portable chilling and heating is G&D’s Fire & Ice™ portable heating and chilling unit. The Fire & Ice’s roots stem from its early days of navigating busy wineries during harvest. Its functionality continues to expand whether it’s in maintaining temperature control in a stainless steel varnish tank or heating apple juice up to yeast pitching temps. The Fire & Ice is your solution when portability is a requirement. The CH-5/10.5 comes standard with a 5 HP compressor, powder coated steel frame, 316 stainless steel skin, the ability to service 5 vessels at a time, and heavy-duty rubber casters for easy portability. Can’t stand the heat? Don’t worry; this unit comes in a chill only model as well, featuring the same design and specifications.


Features:
  • Complete refrigeration circuit
  • Engineered high efficiency heat exchanger for maximum energy efficiency
  • Low watt density heating element, which avoids damage to glycol system from high heat contact
  • Glycol circulation pump
  • Dynamic fluid bypass valve
  • All insulated copper piping
  • Insulated stainless steel glycol reservoir
  • Powder coated steel frame
  • Stainless steel housing
  • 4 brass quick disconnects, which allows you to heat or cool up to 4 tanks at once without the loss of glycol
  • Heavy duty rubber on steel casters for easy portability
  • ETL 508A listed complete control panel w/single point electrical connection, breakers, starters & safety switches high and low pressure controls
  • NEMA 4X digital temperature controller for simple operation in damp environments
  • 25 ft. power cord
  • 1 set of 20 ft. glycol hoses with female quick disconnects
  • Factory-run tested and charged with refrigerant
  • 1 year parts and labor warranty

Key Specs:

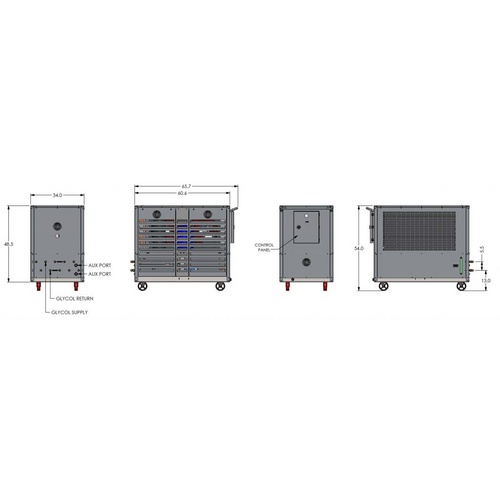

  • Dimensions (WxLxH): 34” x 61” x 54”
  • Tank Volume: 50 Gallons
  • Process Pump: 1.5 HP
  • GPM @ 25PSI: 40 GPM
  • Operating Weight: 1400 lbs.
  • Connection Size: .75"
  • Heating (Btu/H) 35,800



Item # GLY824
Weight 1850 LBS
